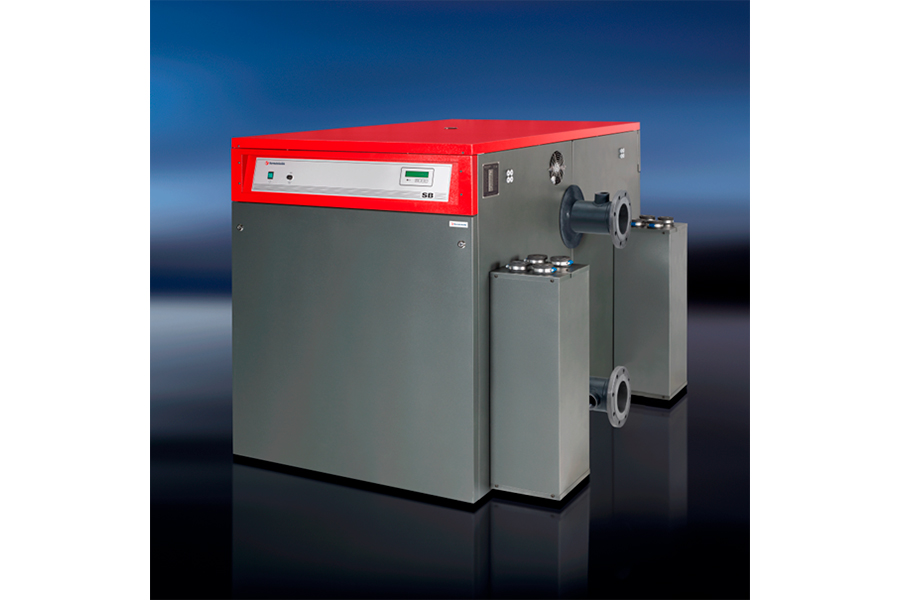

Varmeteknikk’s Electric boilers series SB, 450 – 1200 kW

The largest series of Varmeteknikk’s ridgid and reliable element boilers.

750-1200 kW are delivered for 3-phase power connection in 3×400 V or 3×690 V, and 450-750 kW in 3×230 V (other boiler dimensions). Other voltages may be delivered on request.

The regulator/controller is very user friendly, and regulates the power in 30 steps.

An optional outdoor sensor is avalable for optimized economical operation. The boiler output temperature is then compensated for the outdoor teperature according to a heat curve.

The boilers have digital and analogue in- and outputs for external control an monitoring, so that they may be visulized and controllerfrom the customers SCADA system. Optionally bus couplers may be delivered preinstalled for MODbus or BACnet communication.
The boilers may normally also be controlled directly from a heat pump.

Varmeteknikk boilers are delivered with standard DN125 – PN16 flanges.
